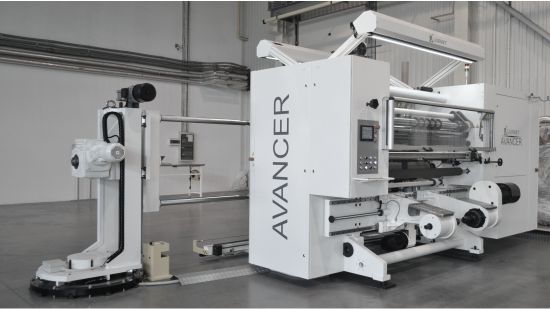

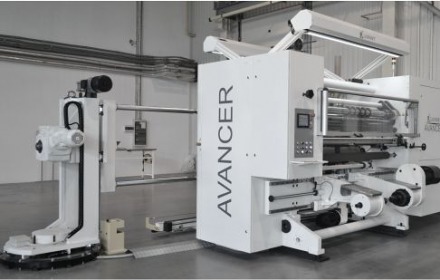

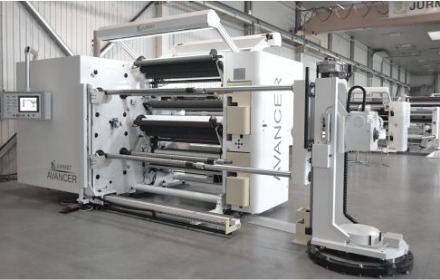

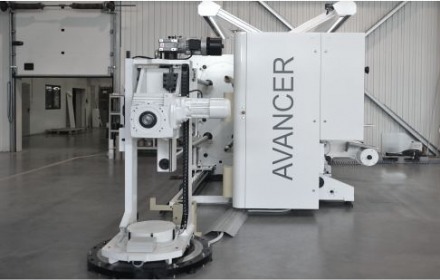

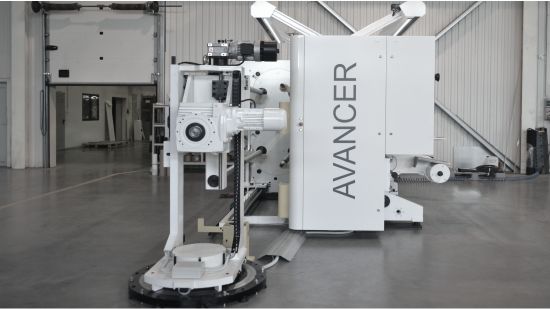

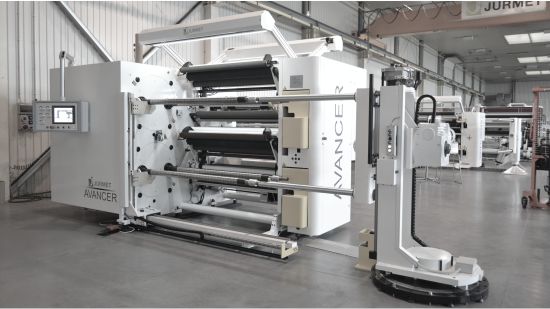

AVANCER duplex turret slitter
AVANCER is an automatic double turret slitter with four rewinding shafts designed for increased productivity and low production downtime. The slitter is built according to traditional Jurmet solid and robust construction standards. Numerous proven solutions applied in Avancer slitter are designed to ease of operation and maintenance of high degree of flexibility.
DANE TECHNICZNE
|
Width of material
|
1000mm/1300mm/1600mm
|
|
Unwide diameter
|
1300mm / 1500mm
|
|
Rewind diameter
|
600
|
|
Max. mechanical speed
|
700m/min.
|
|
Weight of parent roll
|
2500kg
|
|
Min.slitting widht
|
15mm (50mm as standard)
|
|
Core ID
|
70mm,3”,120mm,150mm,6”
|
|
Converted
|
Printed/unprinted foil (PE,PP,PA,PET and other),metalised foil, laminated, shrink film, label stock film, paratransmission film, aluminium, paper.
|
|
Application
|
Packaging for food industry, flexo printing houses, health care materials and pharma materials.
|
|
|
|
Available equipment |
Advantages |
|
Compact construction |
Space saving |
|
Shaftless unwind for 3” and 6” including a remote control |
Fast loading process |
|
Hydraulic lifting of parent roll |
Fast loading process |
|
Supported unwind of stretchy films
|
The motor gives a part of energy back to the slitter – reduction of energy consumption by 30%. Supported unwind of stretchy films |
|
Dancing roller |
Exact measurement of tension on unwind |
|
Ultrasonic web guiding system +-50mm including oscillation mode |
Control and readjustment of uneven rolls |
|
Optical sensor |
Control of printed line |
|
Adjustable and driven bowed shaft |
Optimization of distribution of waved material |
|
Pneumatic splicing table to join the material behind unwind station |
Fast junction of parent roll |
|
Adjustable pneumatic splicing table placed over unwind station |
Easy junction of parent roll, possibility of print quality control |
|
Slit methods: -tangent or wrap method including rotary knives -rotary knives in pneumatic holders -rezor blades |
Optimization of slit according to converted material
|
|
Automatic knife positioning system |
Reduction of slit width setting up time |
|
Positioning of knives with laser bean |
Acceleration of manual knife setting up process |
|
Pivoting upper and lower knife shafts |
Knife shafts always remain on the slitter |
|
Idle rollers covered with cork rubber |
Foil guiding, regulation for heavy rollers |
|
4xrewinding friction shafts |
Equalization of slit rolls tensions |
|
2x rubber contact rollers/individual contact rollers |
Contact rollers automatically adjusted according to material characteristics |
|
Pneumatic griping bars |
Keep material tensed on the slitter after the machine is stopped |
|
Touch screen panel |
Setup of current job parameters, diagnostic, |
|
Inbuilt trim exhaust system |
No need for peripheral trim exhaust systems |
|
Automatic laser core positioning system |
Acceleration of cores sets up process on rewinding shafts |
|
Automatic core positioning system with pushing bar |
Automation of placing cores on rewinding shafts |
|
Automatic pushing bar |
Fast unload of slit reels |
|
Manual handling to unload slit reels |
Fast unload of slit reels |
|
Semi-automatic handling to unload slit reels |
Fast unload of slit reels |
|
Automatic handling to unload slit reels |
Fast unload of slit reels |
|
