MASTER2

MASTER2 slitter is the answer to growing demand for high performance and clean slitting process.

  • 1000-2200mm (39.4"-86.6")
    Web width
  • 1100-1500mm (43.3"-59.1")
    Unwind roll diameter
  • 610/800mm (24"/31.5")
    Max. rewind diameter
  • 700m/min. (2297 ft/min.)
    Speed

MASTER2

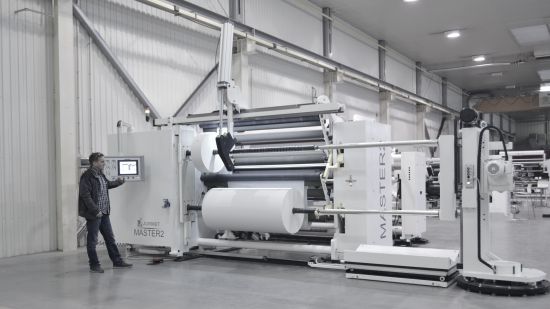

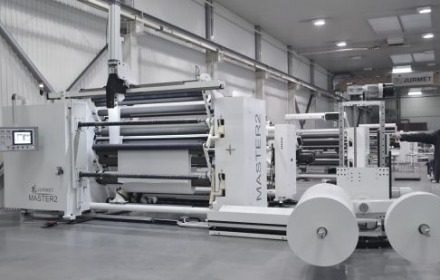

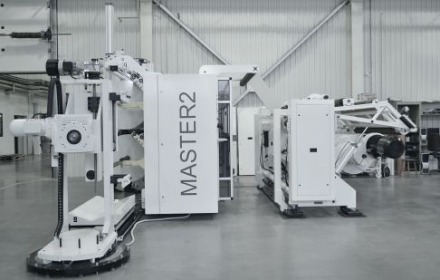

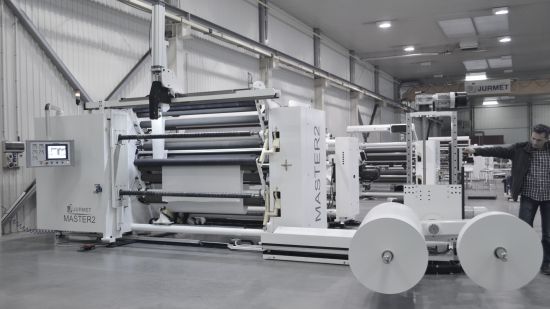

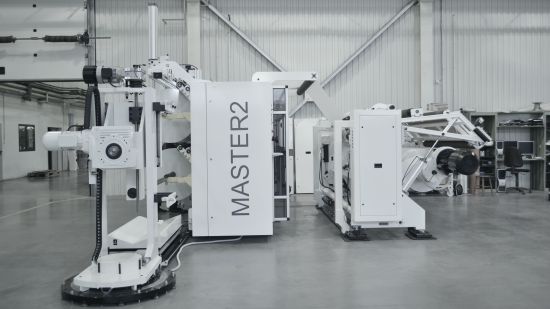

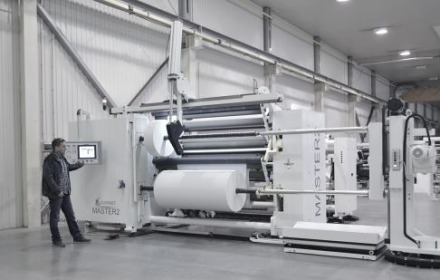

MASTER2 - duplex slitter with separate unwinder

MASTER2 slitter keeps the constant slitting parameters independently of job conditions. A supported unwind with a motor placed on the unwind station, the main drive motor and rewind motors, as well as precise web tension control keep slitting process of various materials under control. Moreover, top run of material protects the materials against dust and other impurities. The constancy of MASTER2 job is confirmed for converting standard packaging materials with 700m/min.

Possibility of the precise web tension control, special geometry of the slitter and solid mechanical and electronic parts result in constant slit independently of mechanical wore out of the slitter. Additionally, hermetic dust free friction chucks reduce considerably the maintenance time.

TECHNICAL DATA

Width of material
1000/1300/1600/1850/2000/2200mm (39.4"/51.2"/63"/72.8"/78.7"/86.6")
Unwind diameter
1100/1300/1500mm (43.3"/59.1")
Rewind diameter
610/1000mm (24"/39.4")
Max. mechanical speed
700m/min. (2297 ft/min.)
Weight of parent roll
max. 2500 kg (5512 lbs)
Min. slitting width
25mm/1" (50mm/2" as standard)
Core ID
70mm, 3”, 120mm, 150mm, 6”
Converted material
printed / unprinted foil (PE,PP,PA,PET and other),metalised foil, laminated, shrink film, label stock film, paratransmission film, aluminium, paper.
Application
packaging for food industry, flexo printing houses, health care materials and pharma materials
