MASTER3

MASTER3 is a high-tech slitter designed to slit different types of flexible materials.

  • 1000-2200mm (39.4"-86.6")
    Web width
  • 1100-1500mm (43.3"-59.1")
    Unwind roll diameter
  • 600-1000mm (23.6"-39.4")
    Max. rewind diameter
  • 800m/min. (2625 ft/min.)
    Speed

MASTER3

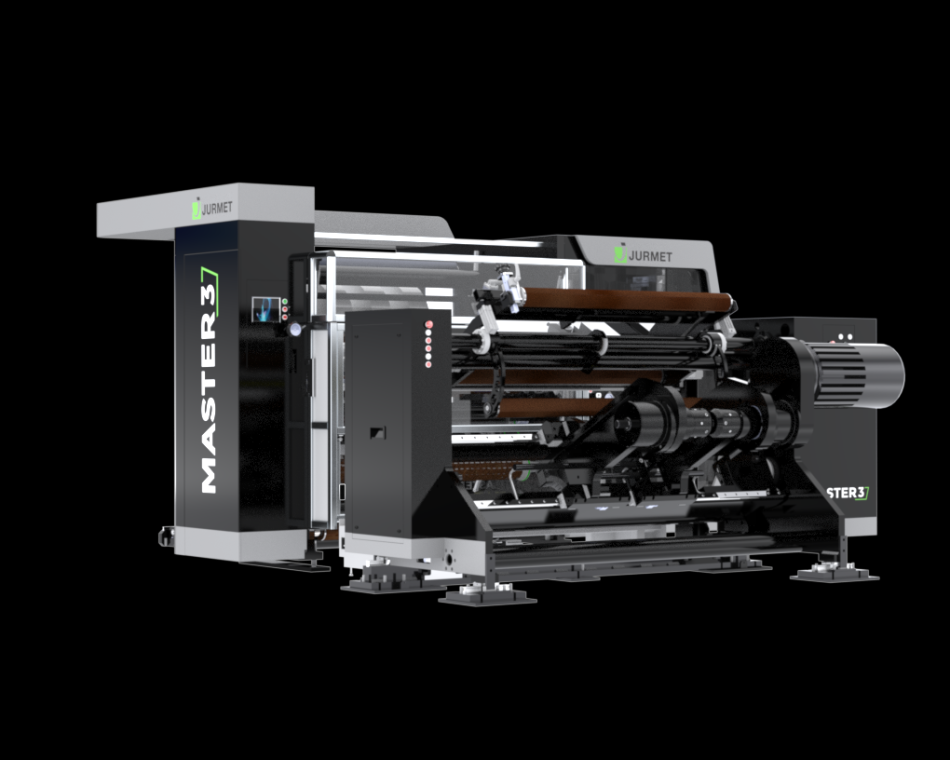

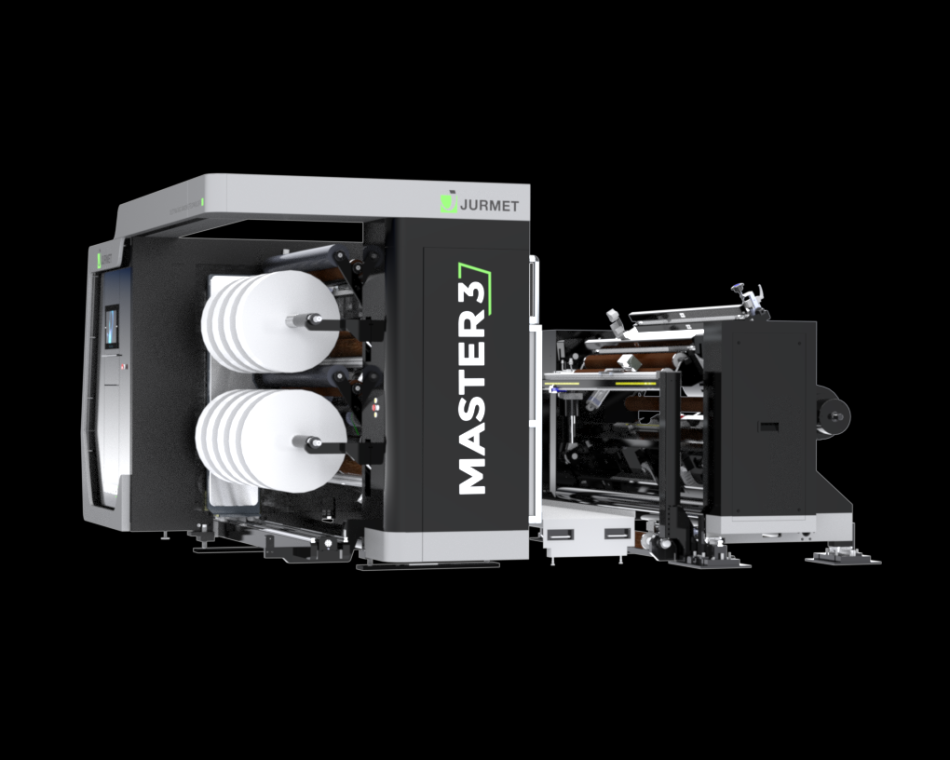

MASTER3 - duplex slitter with separate unwinder

MASTER3 slitter allows to slit efficiently various types of flexible materials. The precise tension control ensures perfect control over the slitting process which in combination with automatic solutions such as automatic knife setting, laser beam setting, web control or core loading increases considerably the efficiency of slitting. Moreover, the energy saving solutions ensure constant saving over the years and reduce the carbon footprint.
The design of the machine allows to incorporate external devices such as a laser device, a punching unit, inspection solutions or an ink jet station which elevates the features of the machine.
This universal model can be supplied in an entry level version or in a fully automated one.

TECHNICAL DATA

Width of material
1000/1300/1600/1850/2000/2200mm (39.4"/51.2"/63"/72.8"/78.7"/86.6")
Unwind diameter
1100/1300/1500mm (43.3"/51.2"/59.1")
Rewind diameter
610/800/1000mm (24"/31.5"/39.4")
Max. mechanical speed
800m/min. (2625 ft/min.)
Weight of parent roll
max. 2500 kg (5512 lbs)
Min. slitting width
25mm/1" (50mm/2" as standard)
Core ID
70mm, 3”, 120mm, 150mm, 6”
Converted material
printed / unprinted foils (PE,PP,PA,PS,PET and other), paper, metalised films, laminates, labelstock films, alu films, non-woven.
Application
packaging for food industry, flexo printing houses, health care materials and pharma materials
